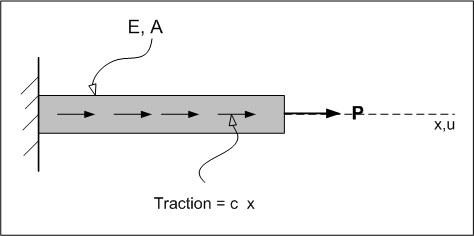

This is a demonstration written in Mathematica showing finite element solution by Ritz method for a
simple axially loaded beam fixed at one end and free to extend on the other end. The axial deformation is
plotted as more elements are added.
Finite element using Ritz method for axial loaded
June 2, 2012 compiled on — Wednesday July 06, 2016 at 08:38 AM
