### 4.7 Solve the 1-D heat partial diﬀerential equation (PDE)

The PDE is

$\frac {\partial T\left ( x,t\right ) }{\partial t}=k\frac {\partial ^{2}T\left ( x,t\right ) }{\partial x^{2}}$

Problem: given a bar of length $$L$$ and initial conditions $$T\left ( x,0\right ) =\sin \left ( \pi x\right )$$ and boundary conditions $$T\left ( 0,t\right ) =0,T\left ( L,t\right ) =0$$, solve the above PDE and plot the solution on 3D.

Use bar length of $$4$$ and $$k=0.5$$ and show the solution for $$1$$ second.

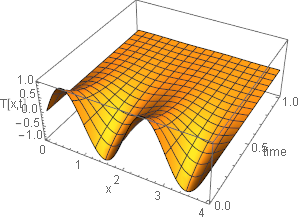

 Mathematica Clear[y,x,t]; barLength = 4; timeDuration = 1; eq = D[y[x, t], t] == k*D[y[x, t], x, x]; eq = eq /. k -> 0.5; boundaryConditions = {y[0,t]==0, y[barLength,t]==0}; initialConditions = y[x,0]==Sin[Pi x]; sol=First@NDSolve[{eq, boundaryConditions,initialConditions}, y[x,t],{x,0,barLength},{t,0,timeDuration}]; y = y[x,t]/.sol Plot3D[y,{x,0,barLength},{t,0,timeDuration}, PlotPoints->30,PlotRange->All, AxesLabel->{"x","time","T[x,t]"}, ImageSize->300]  ContourPlot[y,{x,0,barLength}, {t,0,timeDuration},PlotPoints->15, Contours->15,ContourLines->False, ColorFunction->Hue,PlotRange->All, ImageSize->300]

 Matlab function e57 m = 0; x = linspace(0,4,30); t = linspace(0,1,30); sol = pdepe(m,@pde, @pdeInitialConditions,... @pdeBoundaryConditions,x,t); u = sol(:,:,1); surf(x,t,u) title('Numerical PDE solution') xlabel('x'); ylabel('Time t') set(gcf,'Position',[10,10,320,320]); % ---------------- function [c,f,s] = pde(x,t,u,DuDx) k=0.5; c = 1/k; f = DuDx; s = 0; % --------------- function T0 = pdeInitialConditions(x) T0 = sin(pi*x); % --------------- function [pl,ql,pr,qr] = ... pdeBoundaryConditions(xl,ul,xr,ur,t) pl = ul; ql = 0; pr = 0; qr = 1;
